Triple R Lights Grille Light Modification Kit for Ineos Grenadier & Quartermaster
-
Estimated Delivery:Jun 18 - Jun 22
Triple R Lights Grille Light Modification Kit for Ineos Grenadier & Quartermaster
Triple R Lights Grille Light Modification Kit for Ineos Grenadier & Quartermaster

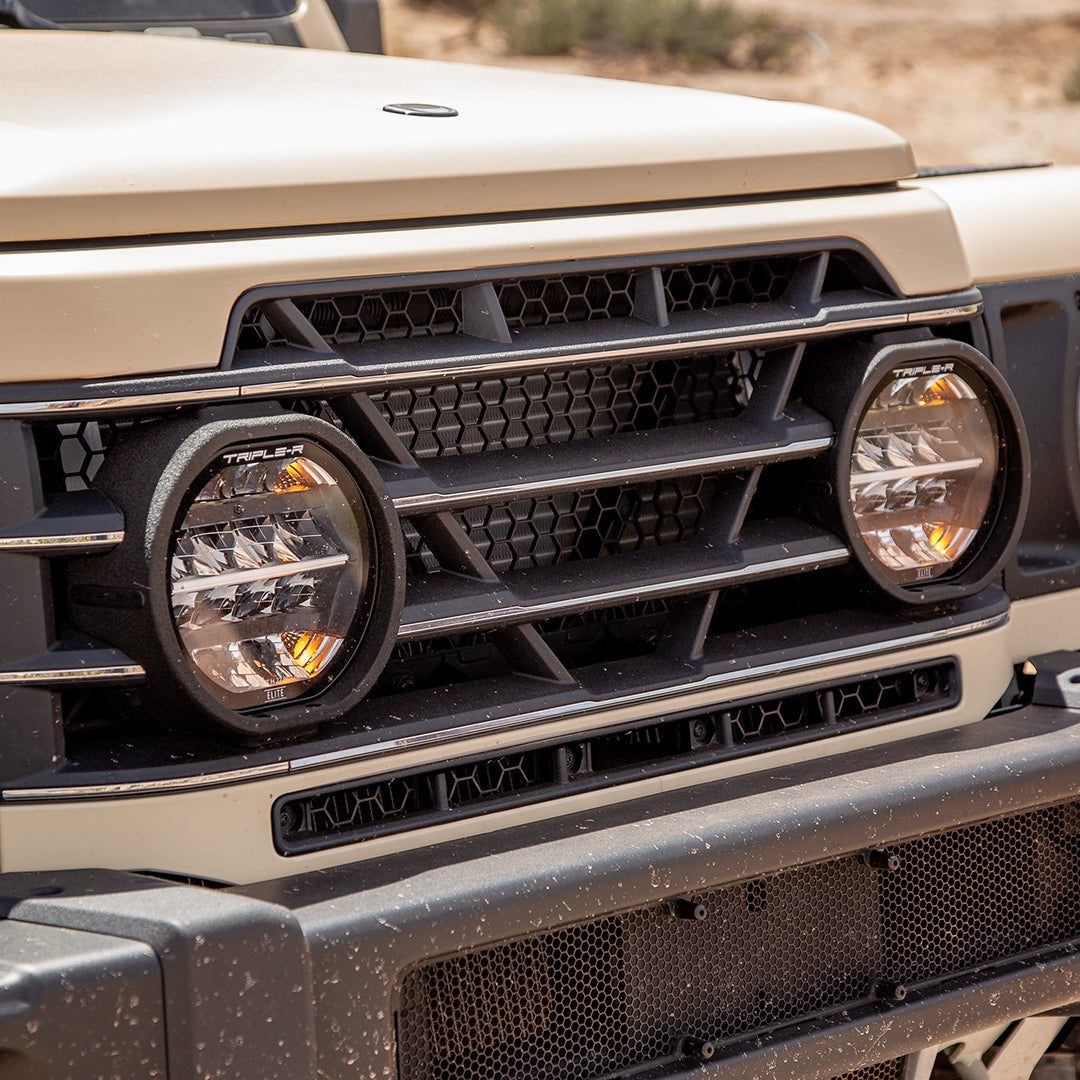

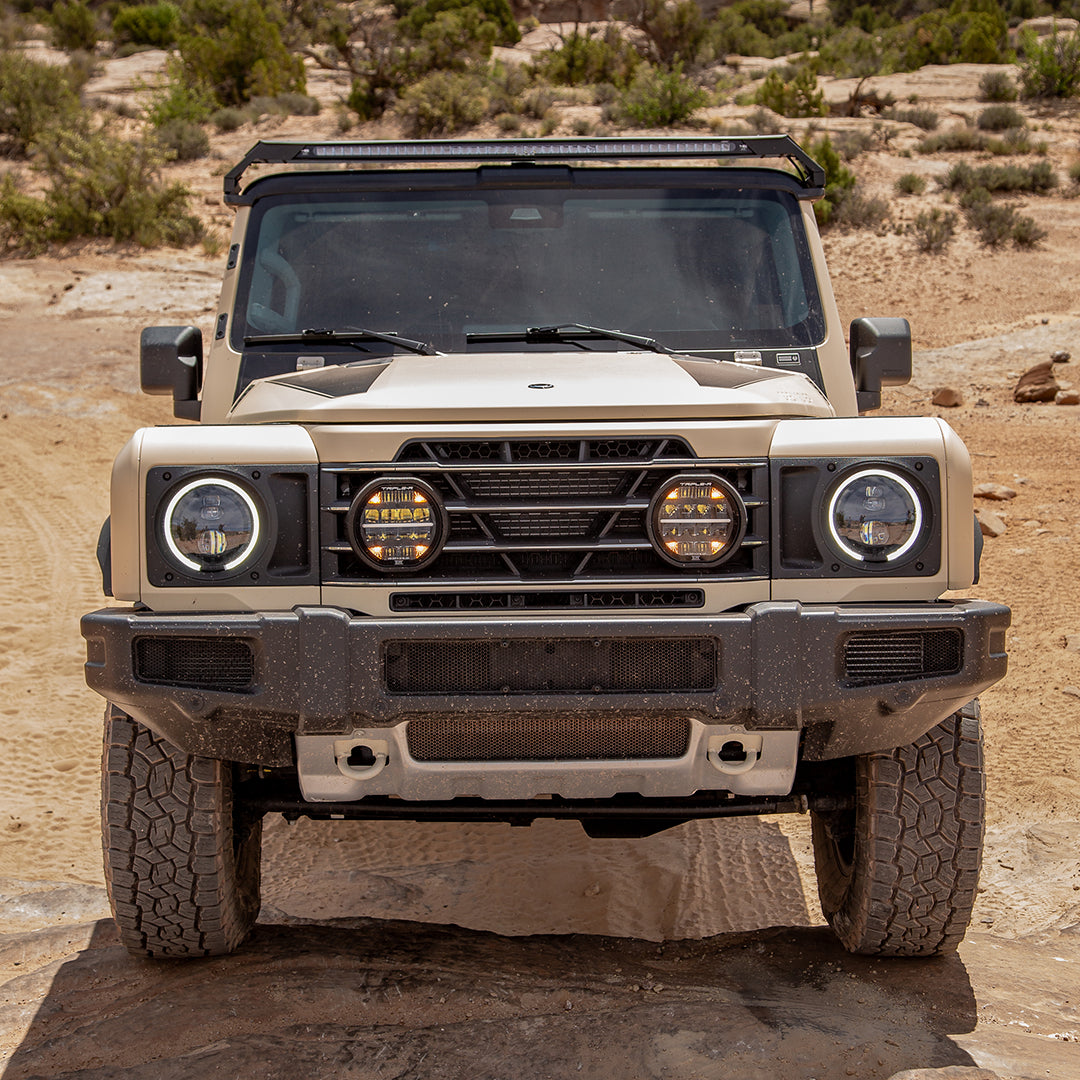

Illuminate your route and elevate your Grenadier's front-end appearance with the Triple R Lights Grille Light Modification Kit. Designed to replace the standard auxiliary lights on the Ineos Grenadier, this comprehensive kit provides everything you need to upgrade your lighting capability and style.
Complete Lighting Solution
The kit comes in two variants of either a pair of SENTINEL 7" Elite lights with back light or 7" Sentinels offering exceptional, wide-beam illumination optimized for both on-road and off-road driving. Along with the lamps, you receive custom plastic housings and brackets, wiring, and a template for easy modification of the factory grille.
Sophisticated Customization

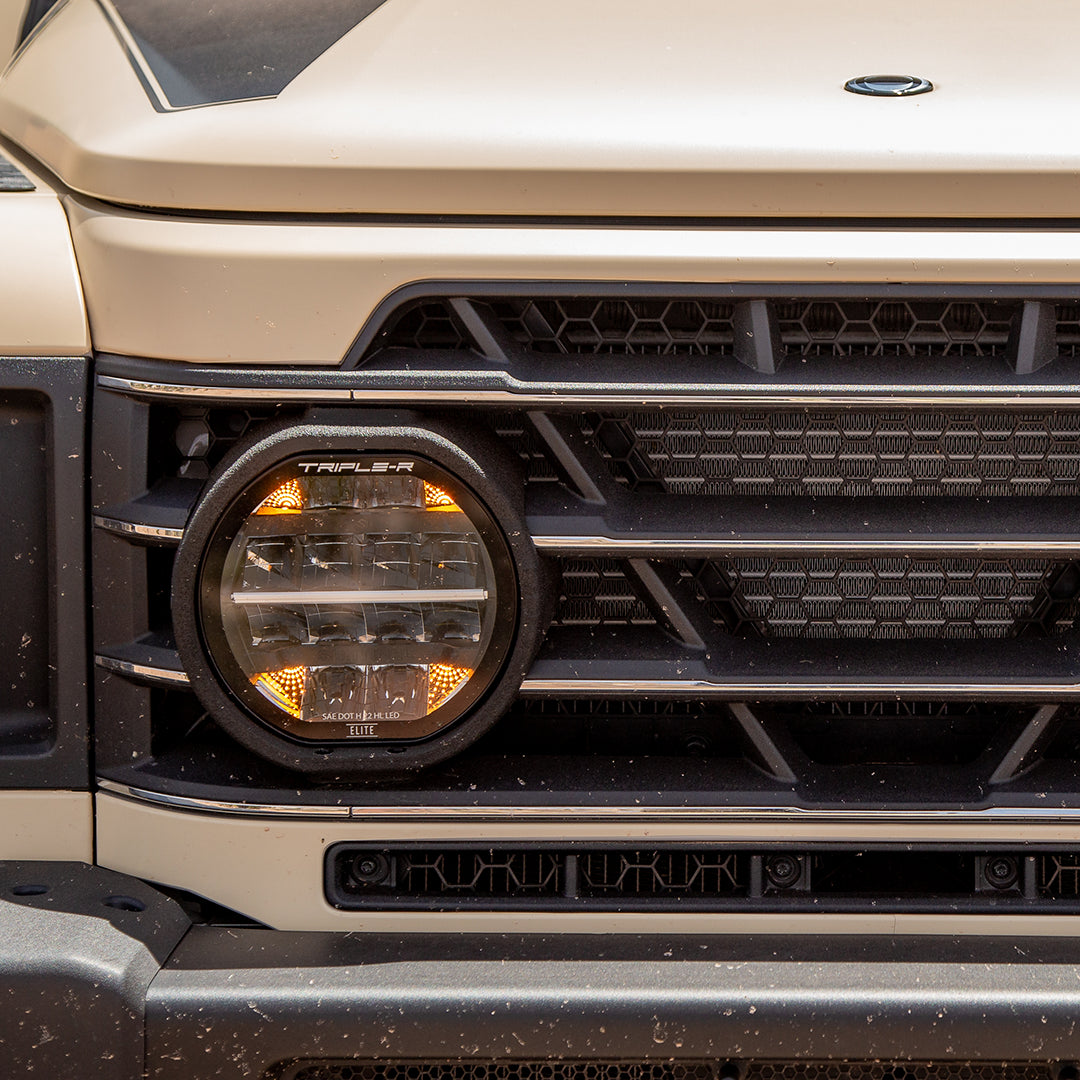

With the Elite version choose between a white backlight to match your factory halos or an amber backlight for a distinctive, standout look. Both options feature a stealth black finish, seamlessly blending with your vehicle's rugged aesthetic while enhancing visibility.
Installation Made Simple
The kit includes a precise template for cutting the factory grille, along with wiring components to connect the backlight to your Grenadier's factory upfitter switches located on the overhead console. Some grille modification is required, but everything else is streamlined for a clean, factory-like appearance.
Key Features:
- Superior illumination: Wide beam pattern from the leader in off-road lighting in the UK, optimized for off-road use.
- Complete package: Includes two lamps, housings, brackets, wiring, and cutout template.
- Custom appearance: Optional white or amber backlight with stealth black housing finish.
Upgrade your Grenadier or Quartermaster's lighting system with this all-in-one kit, providing unmatched visibility and style, even in the toughest conditions.
| Voltage Range (DC) | 10-32V | 10-32V |
| LED Life | 50,000 hours | 50,000 hours |
| Weight | 11 lbs | 11 lbs |
| HIGH BEAM FUNCTION | ||
| Total Luminous Flux | 10,416 Lm |
20,496 Lm |
| Total Driver 'FOV' Flux † | 6,500 Lm | 12,760 Lm |
| Colour Temperature | 5000K | 5000K |
| Power Consumption | 120 Watts | 232 Watts |
| Current Draw (14.4V) | 8.6 Amps | 15.2 Amps |
| Connector | 2-Pin Superseal (+25cm Cable) |
3-Pin Superseal (+25cm Cable) |
| CERTIFICATION | ||
| IP Rating # | IP68 | IP68 |
| High Beam | DOT / SAE J581 (Low Output Mode only) |
DOT / SAE J581 (Low Output Mode only) |
| EMC Certification | ECE R10 | ECE R10 |
| Salt Spray Test | ISO 9227 | ISO 9227 |
| Dump Load Protection | ISO 7637-2 | ISO 7637-2 |
| PHOTOMETRIC DATA | ||
| Horizontal / Vertical Beam Angle | 60° / 12° | 65° / 18° |
| 0.25 Lux | 1720m | 1744m |
| 0.5 Lux | 1217m | 1233m |
| 1 Lux | 860m | 872m |
| 3 Lux | 497m | 503m |
† - Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45° left/right, and +/- 10° up/down. For more information – click here.
# - All Triple-R products are designed to meet the requirements of IP68 testing. Every lamp produced at our UK facility is fully submerged under water prior to sending out.
