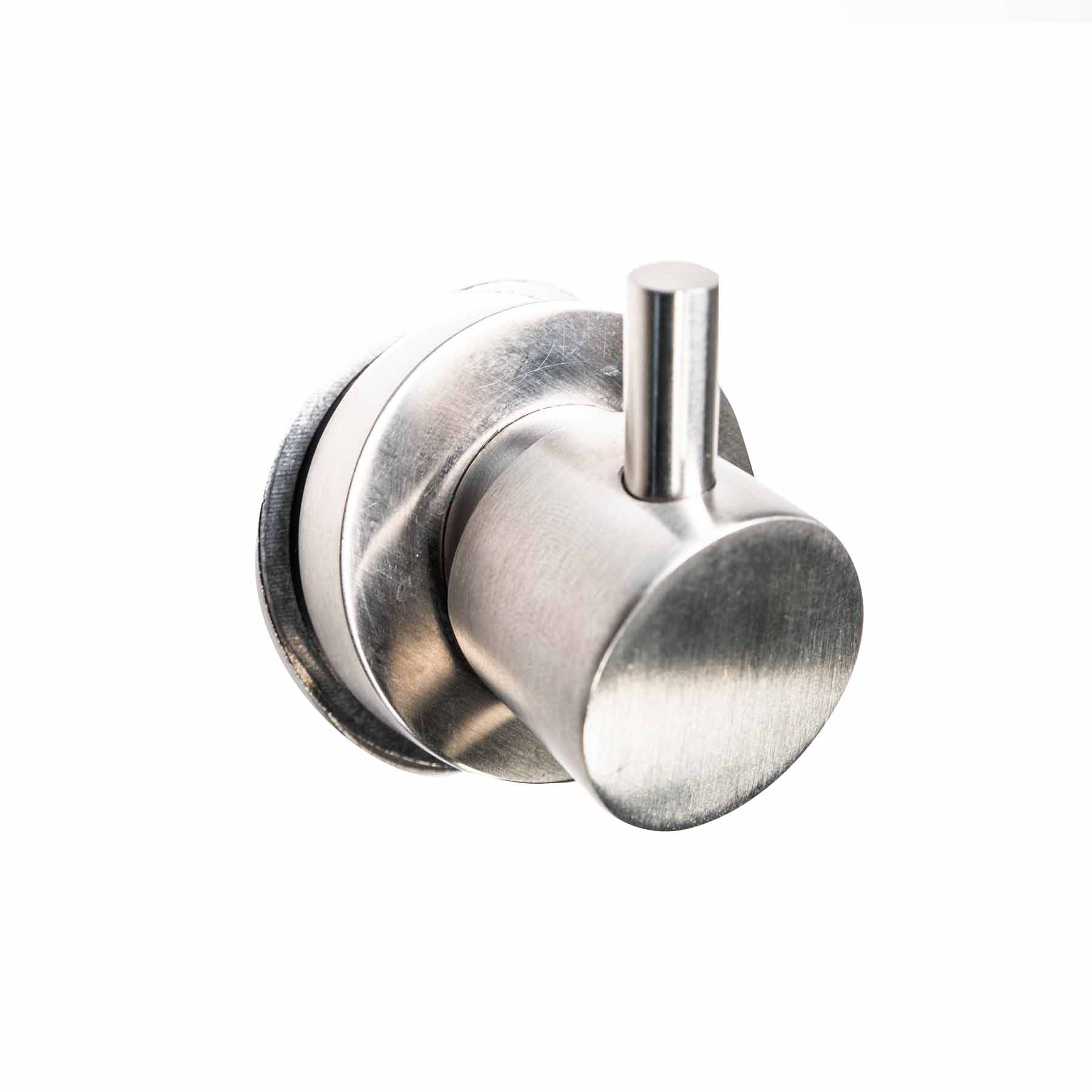

Mixer for Camper Shower - Hot Water - Stainless Steel – Queensize Camper

Now available separately: the mixer from Queensize Camper's "Hot Water" shower set.

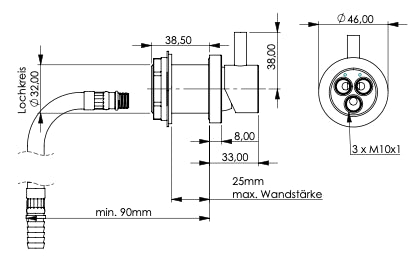

The mixer is mounted through a minimum 34mm diameter hole and secured from behind with a nut, a washer and a flat gasket to prevent rotation. Additionally, an O-ring is embedded on the inside of the rosette to seal against the shower wall.

The mixer is supplied with either a hot or cold water flexible hose, each 30 cm in length, terminating directly with a 10 mm hose nozzle. The outlet for mixed water is also connected with a flexible hose with a 10 mm hose nozzle. If you need to bend the hose 90 degrees directly behind the mixer, you will need a minimum of 90 mm clearance to prevent the hose from kinking, measured from the shower wall front.

Wall thickness: The mixer can be easily installed in wall thicknesses up to a maximum of 25mm. All connections to the mixer and wall outlet have the standard M10x1 thread, compatible with common "armored hoses."

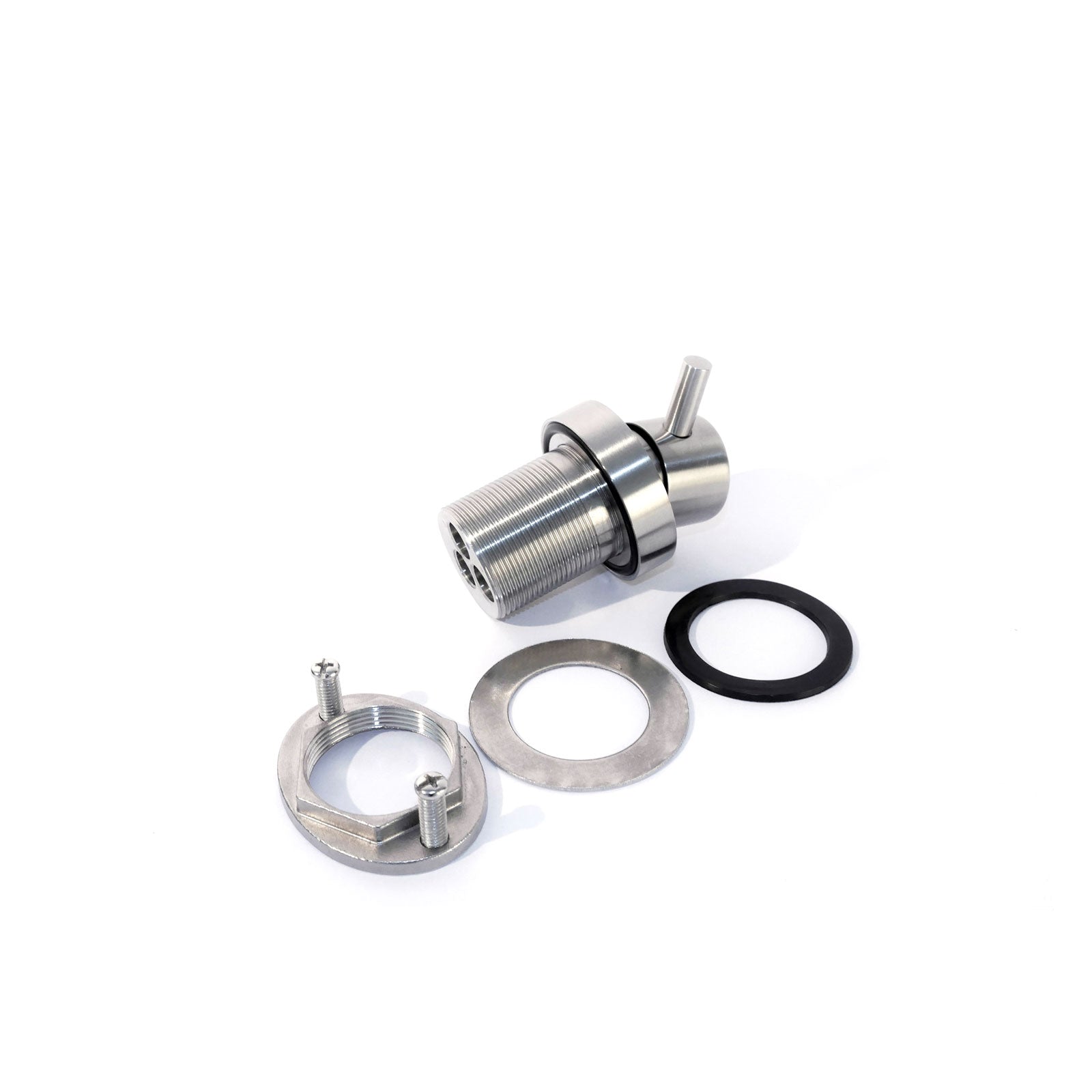

Scope of Delivery:

Mixer (with nut/washer and flat gasket)
3 x 30 cm flexible hoses with 10mm hose nozzle
